Two time zone
Reading the functions
The arrows next to the watch above allow you to show different time zones.
First time zone
The hands display the first time zone.
Second time zone

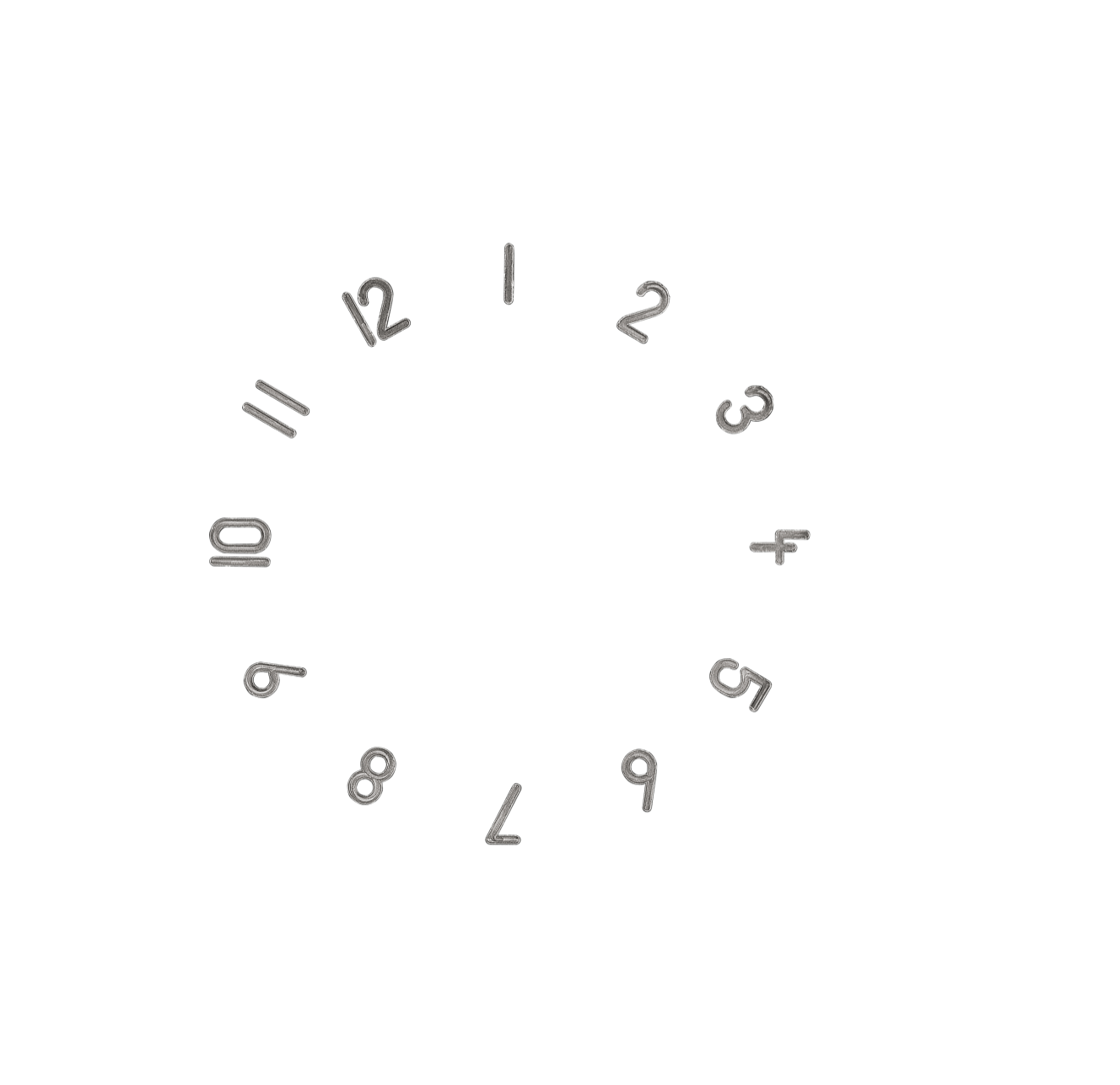

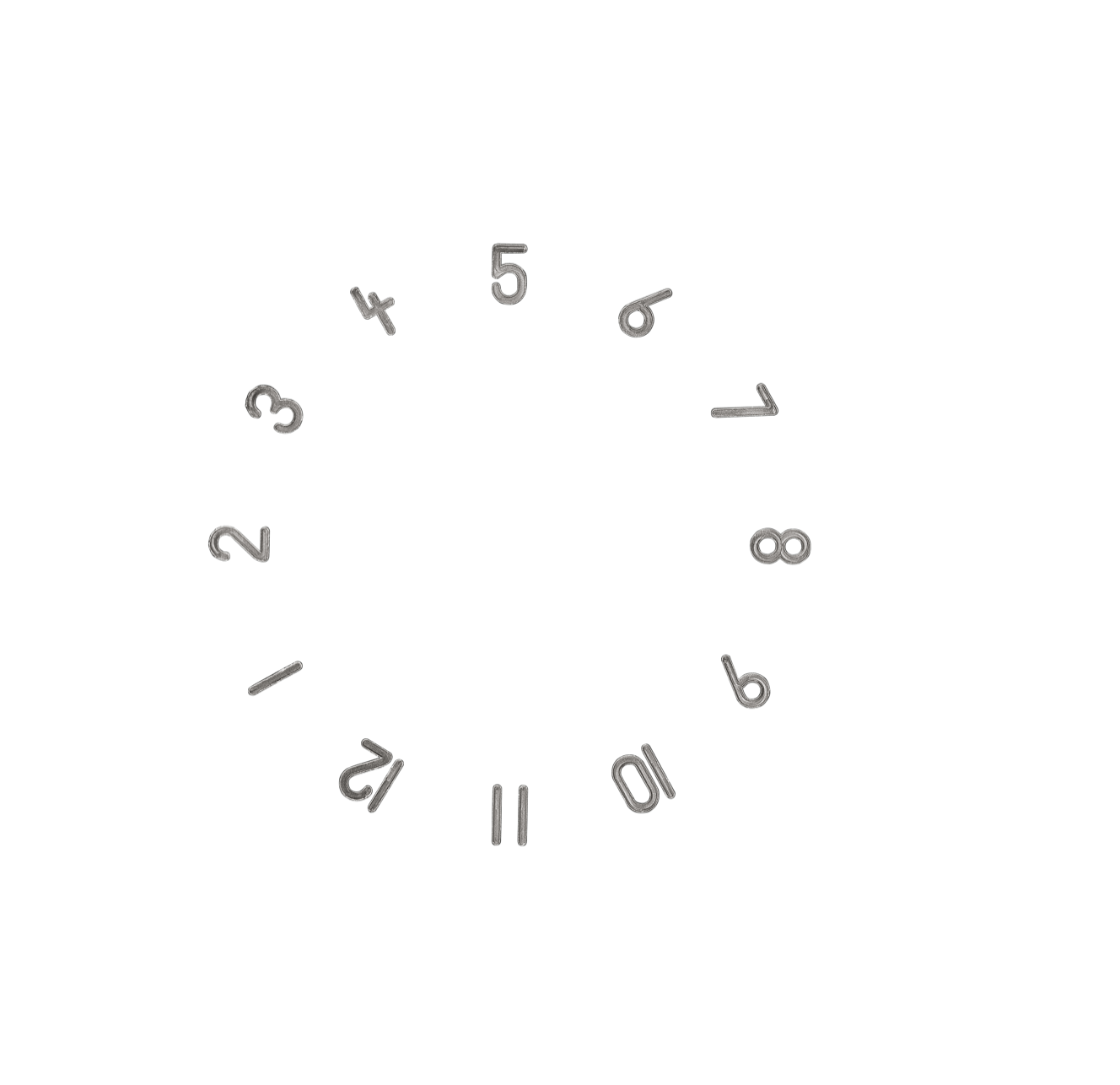

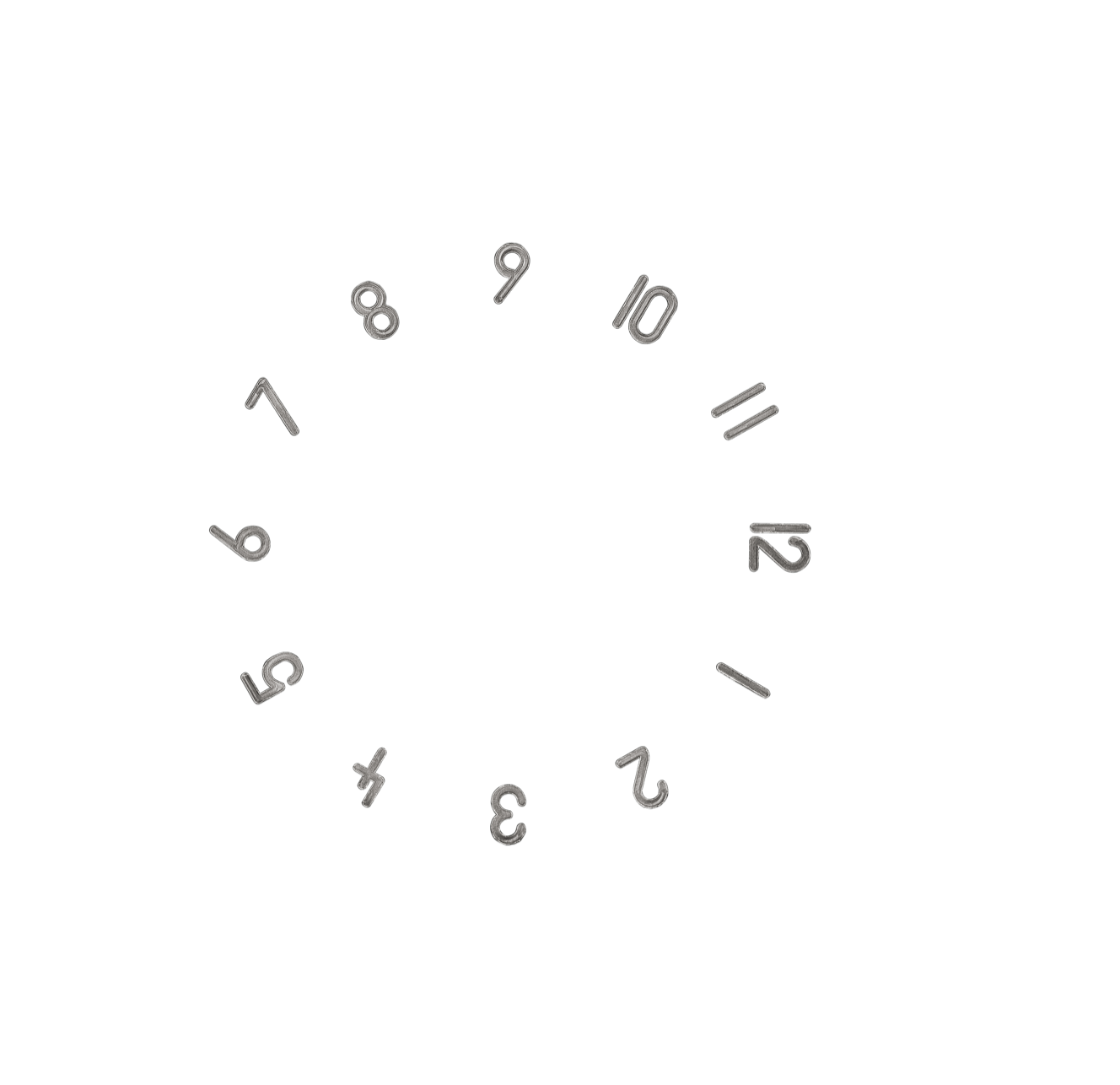

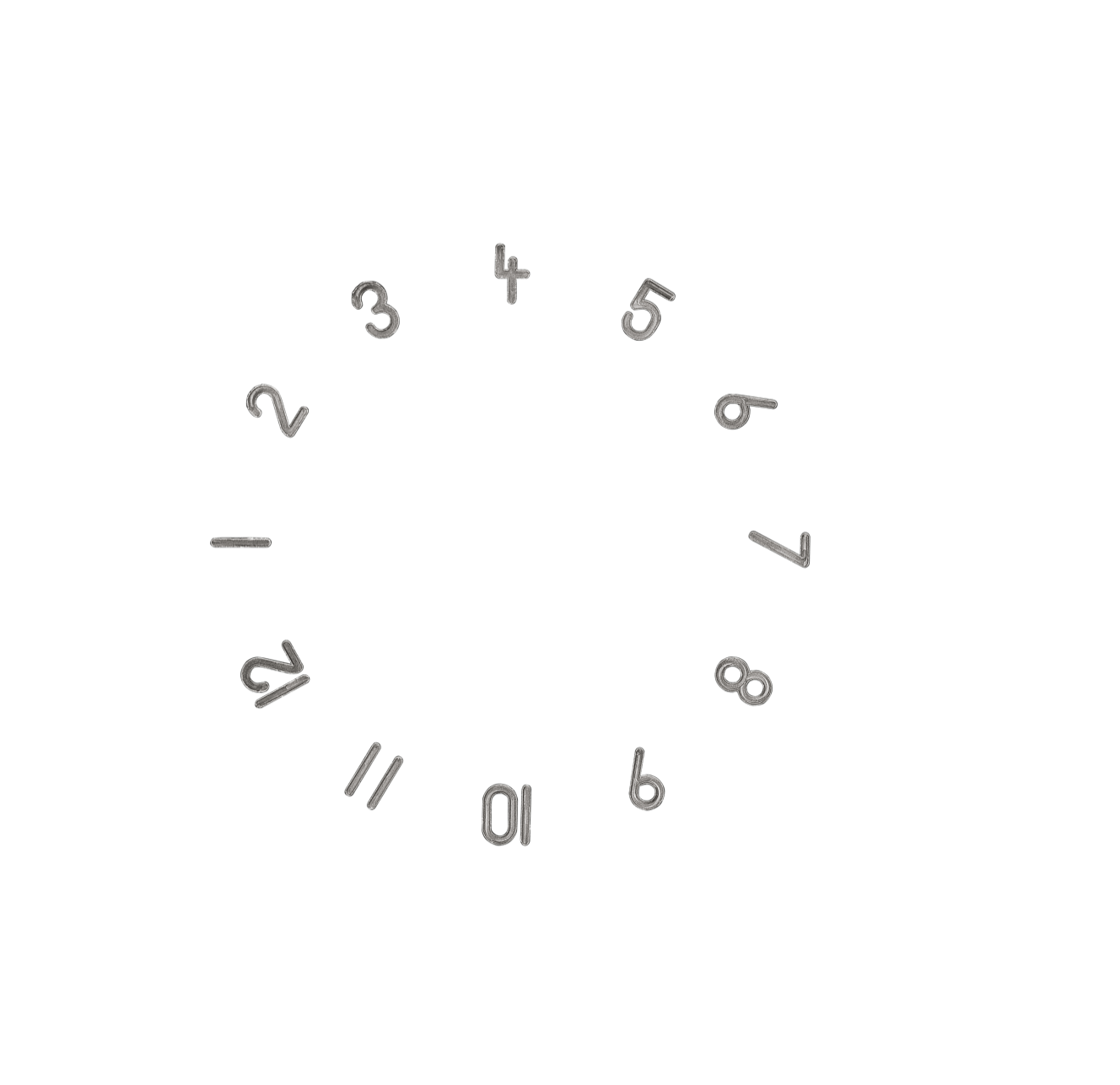

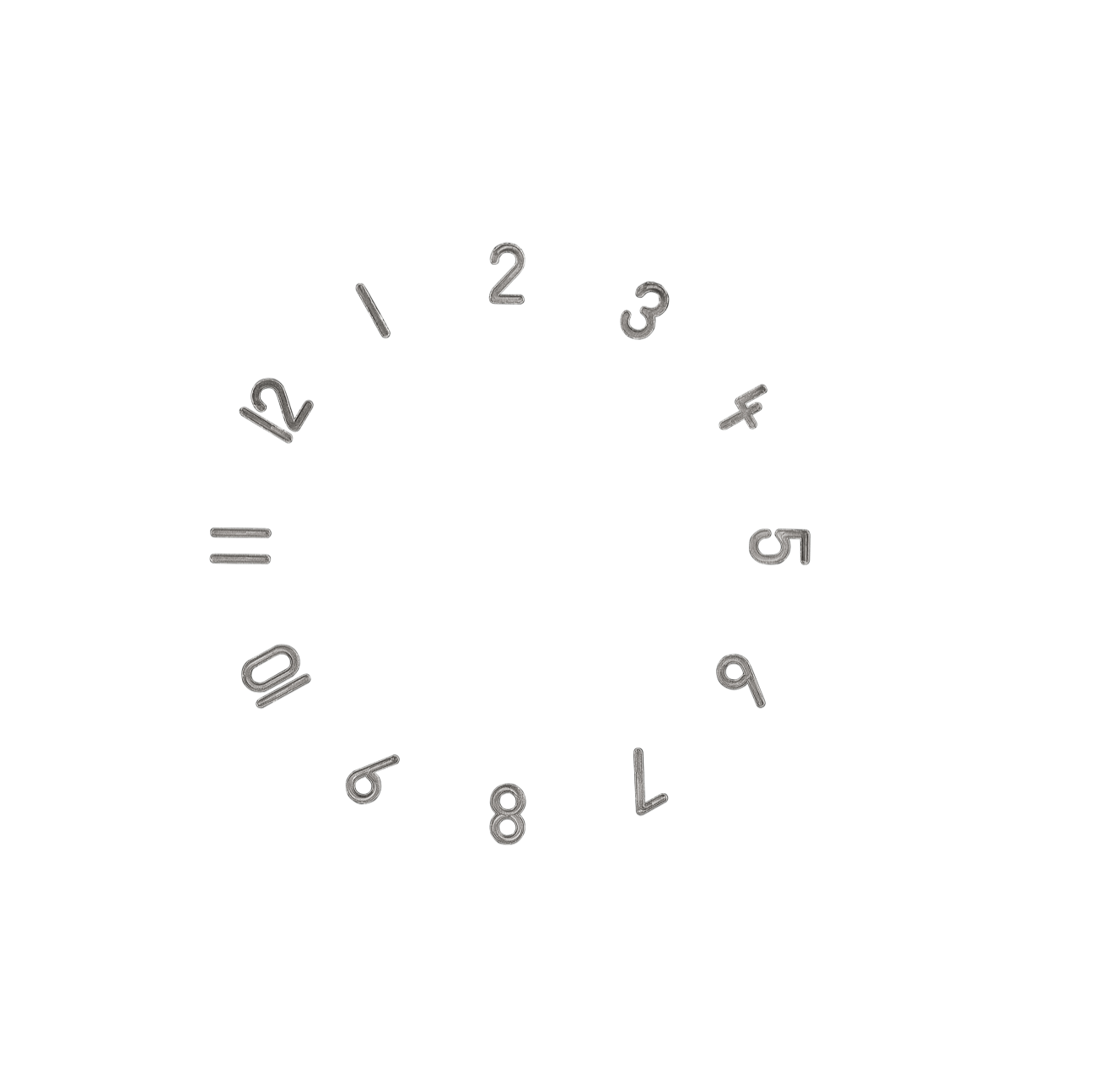

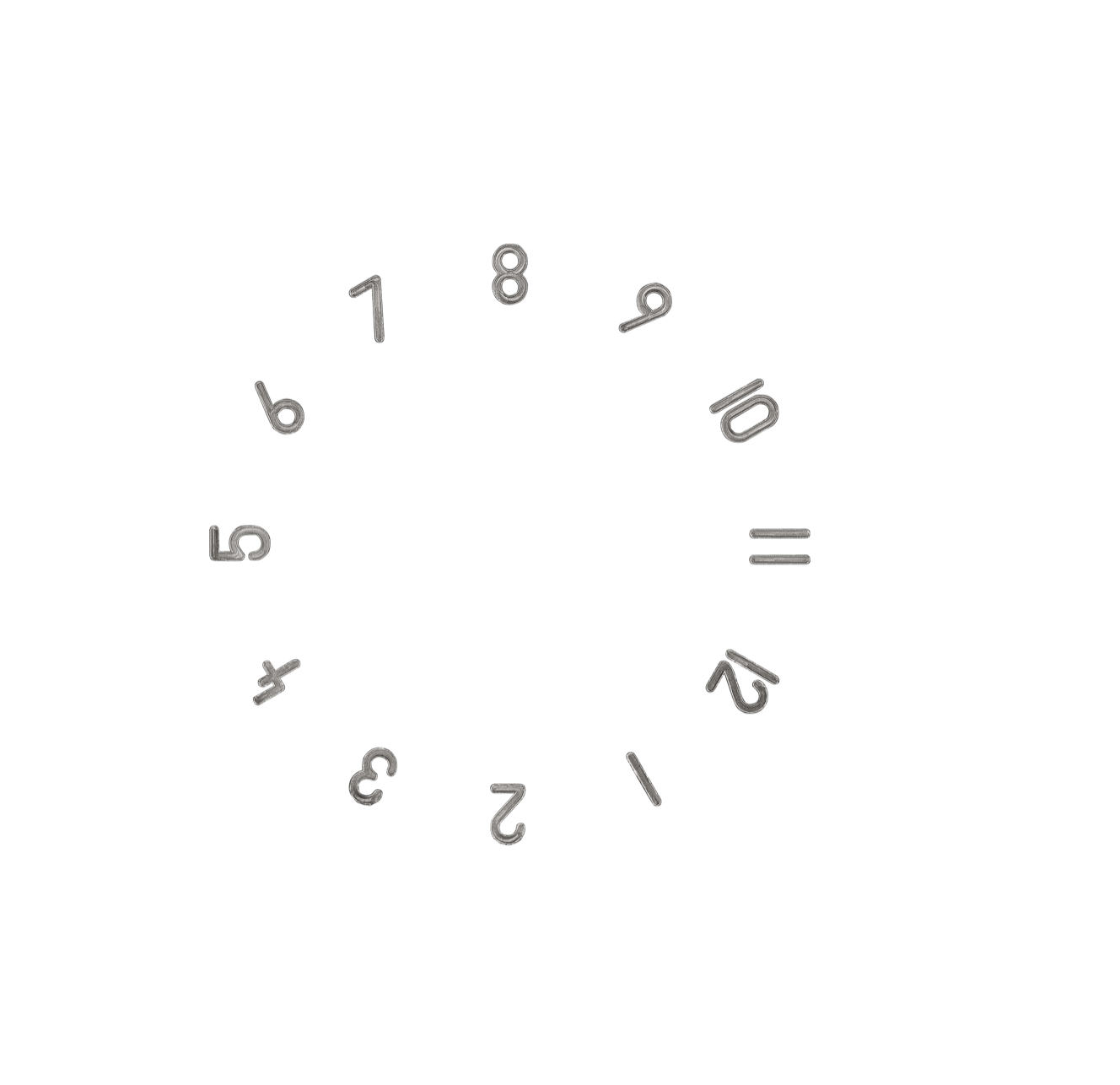

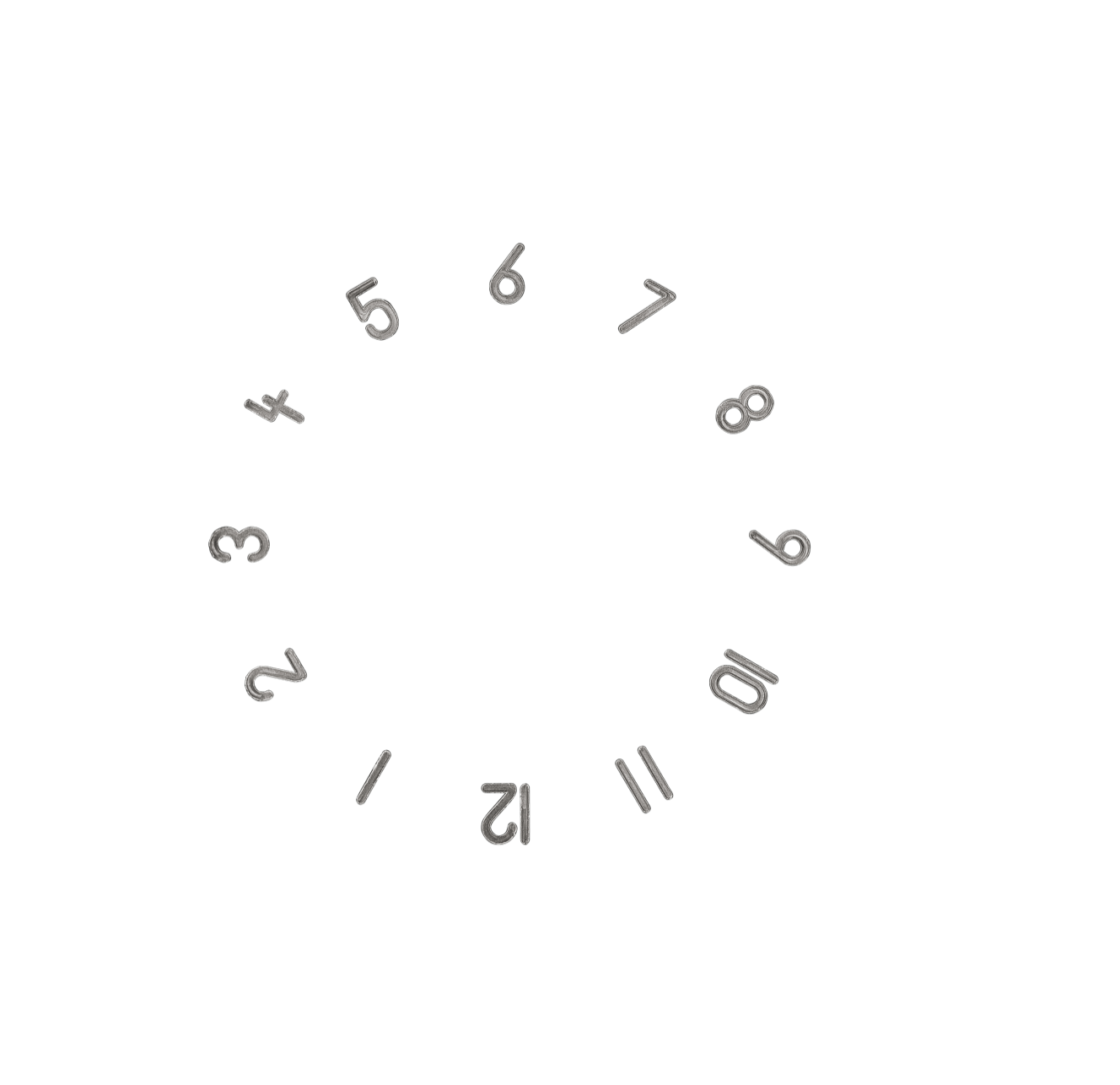

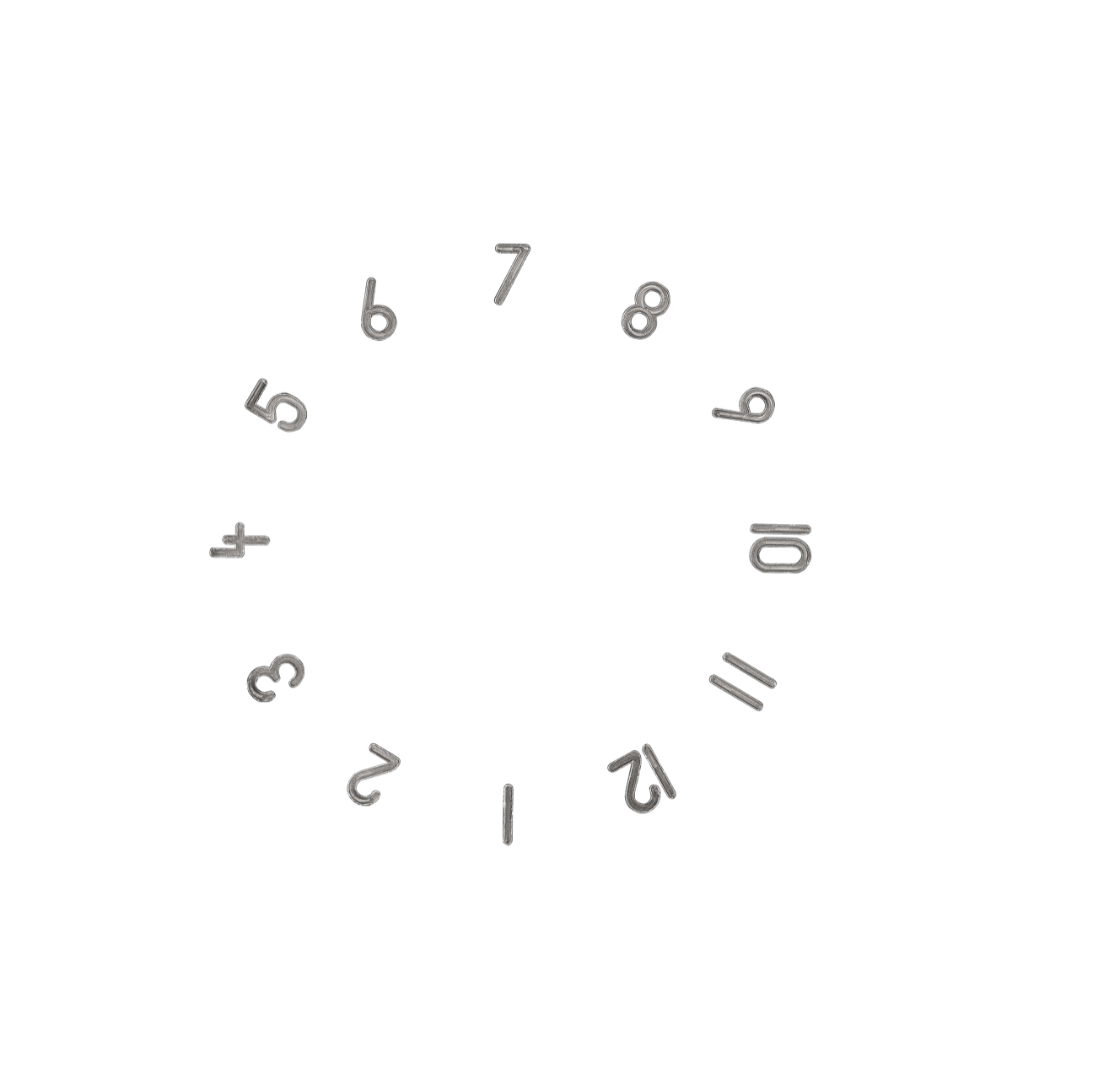

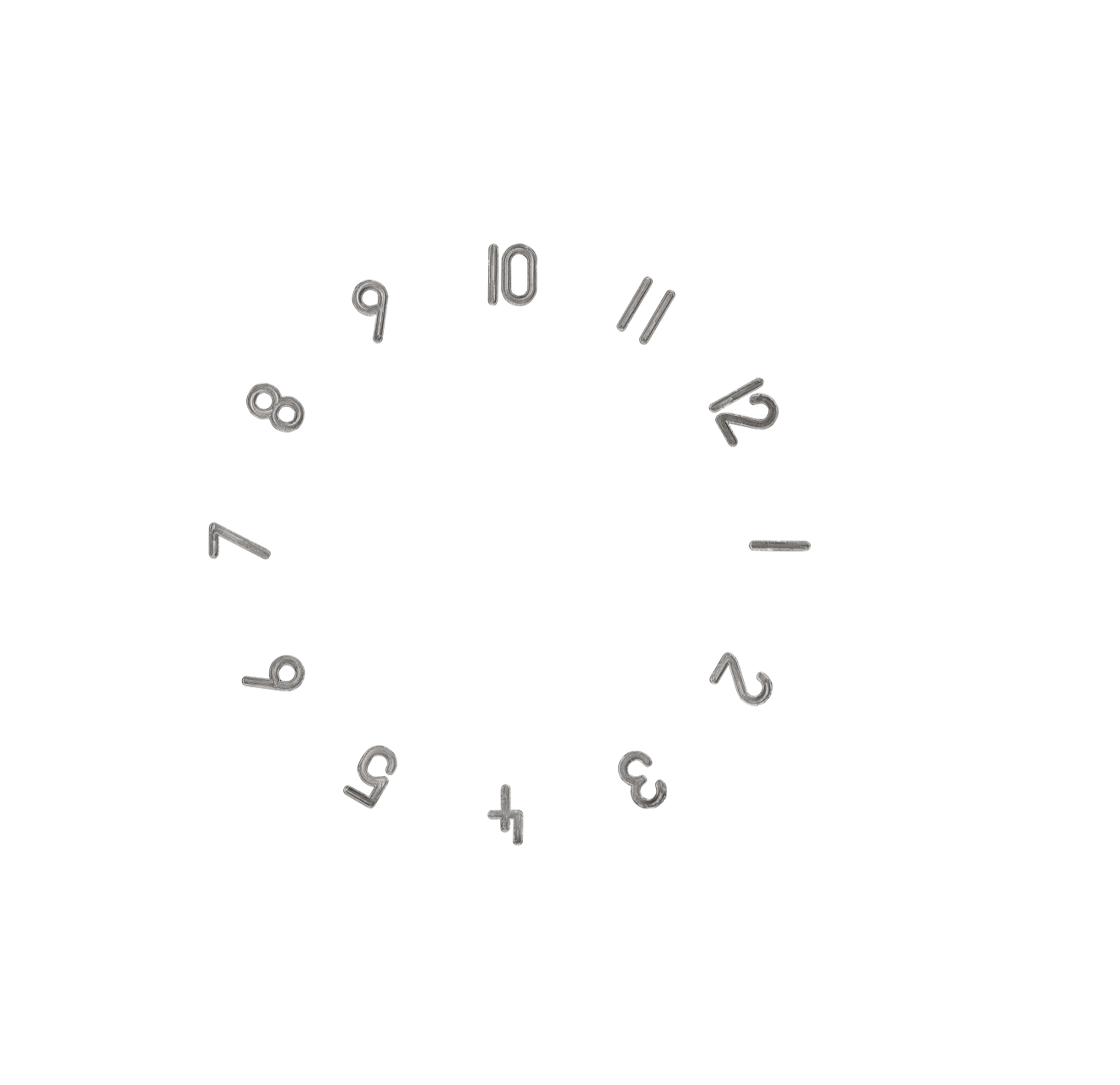

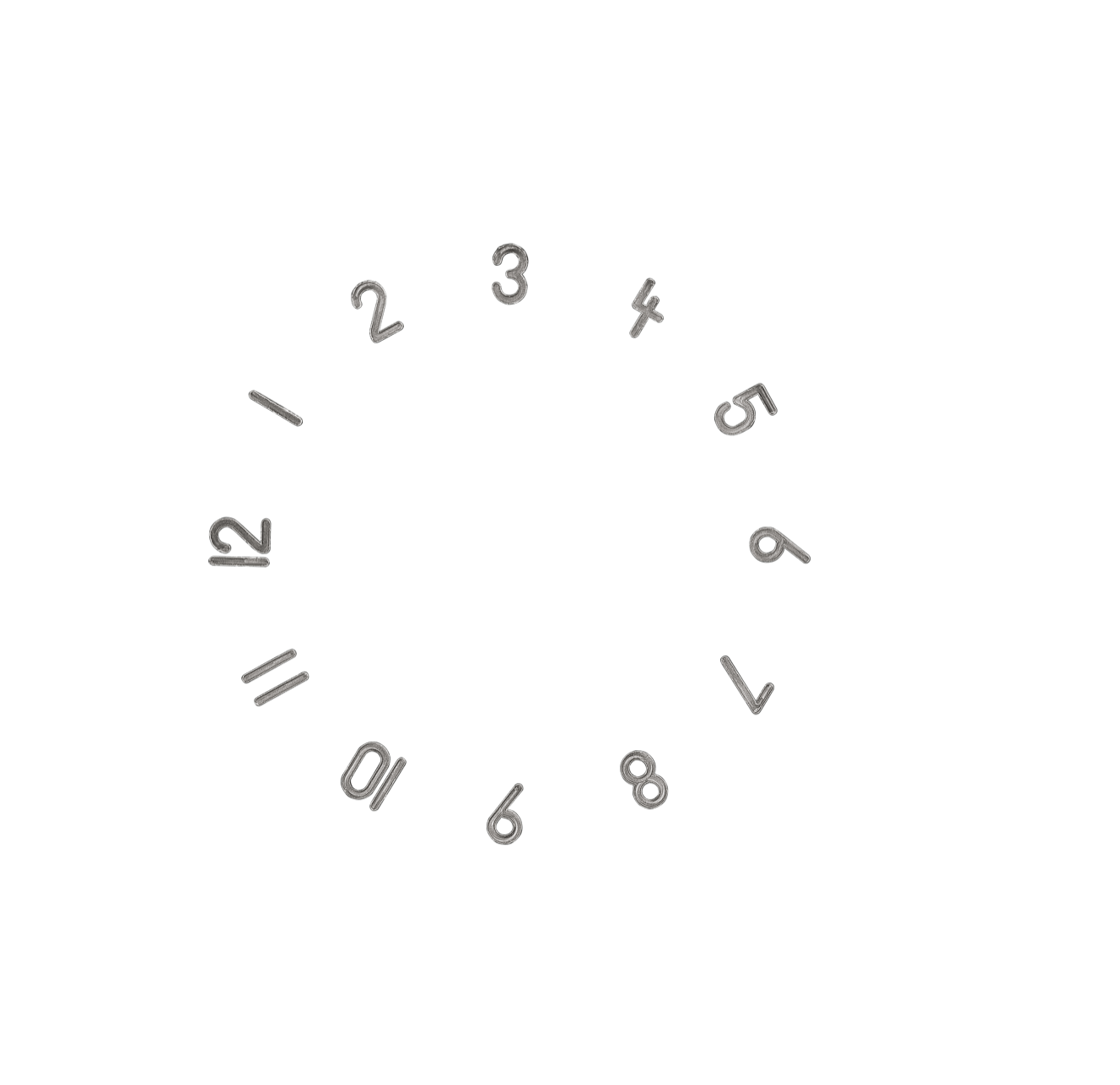

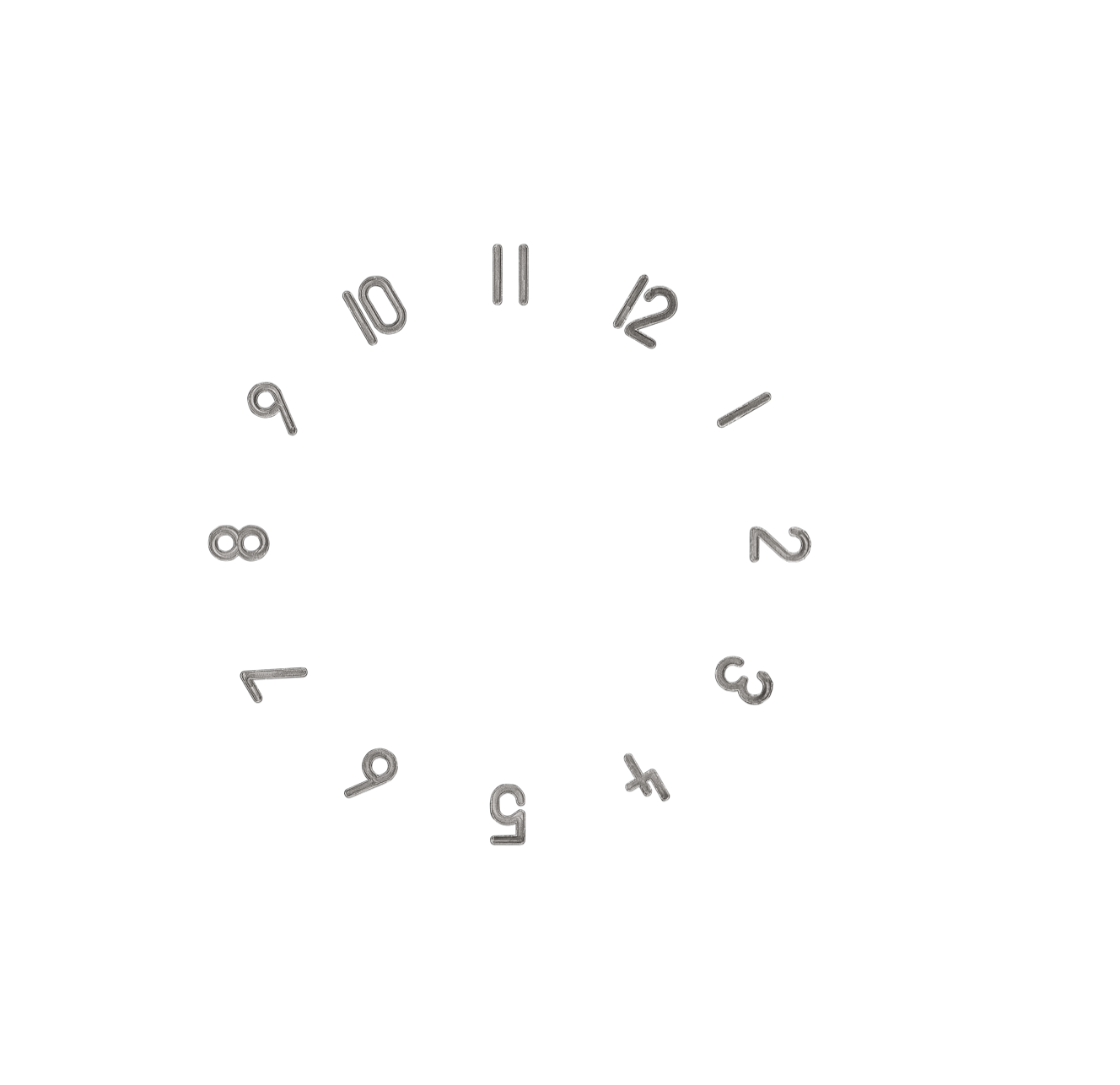

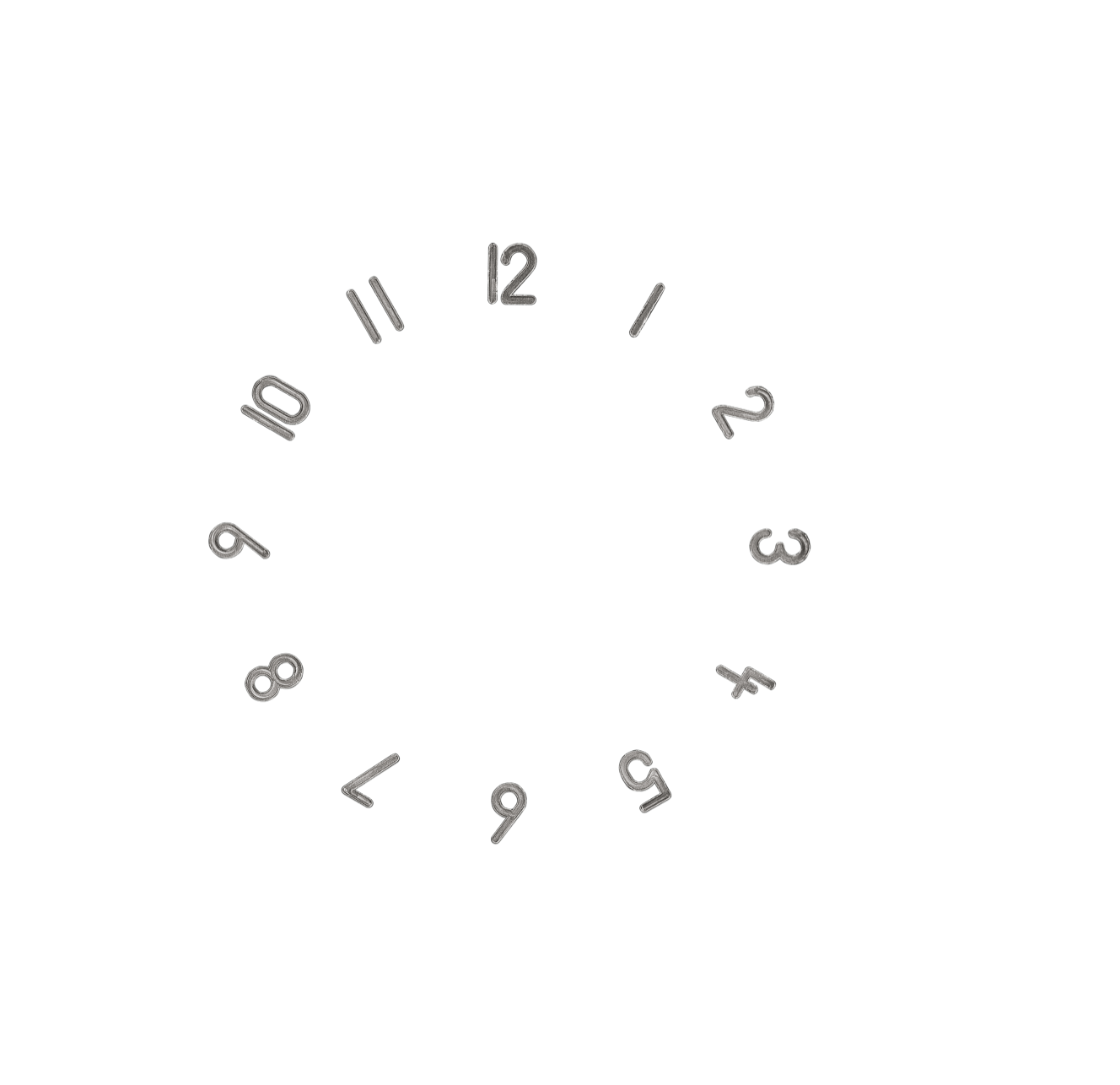

The adjustable time zone disk displays the second time zone. If the second time zone is ahead of yours (for example, +3 hours), you adjust the time zone disk until it displays this number at 12 o’clock. If the second time zone is behind yours, you subtract from 12, and set the result at 12 o’clock.
Mechanics
How is the two time zones function executed?

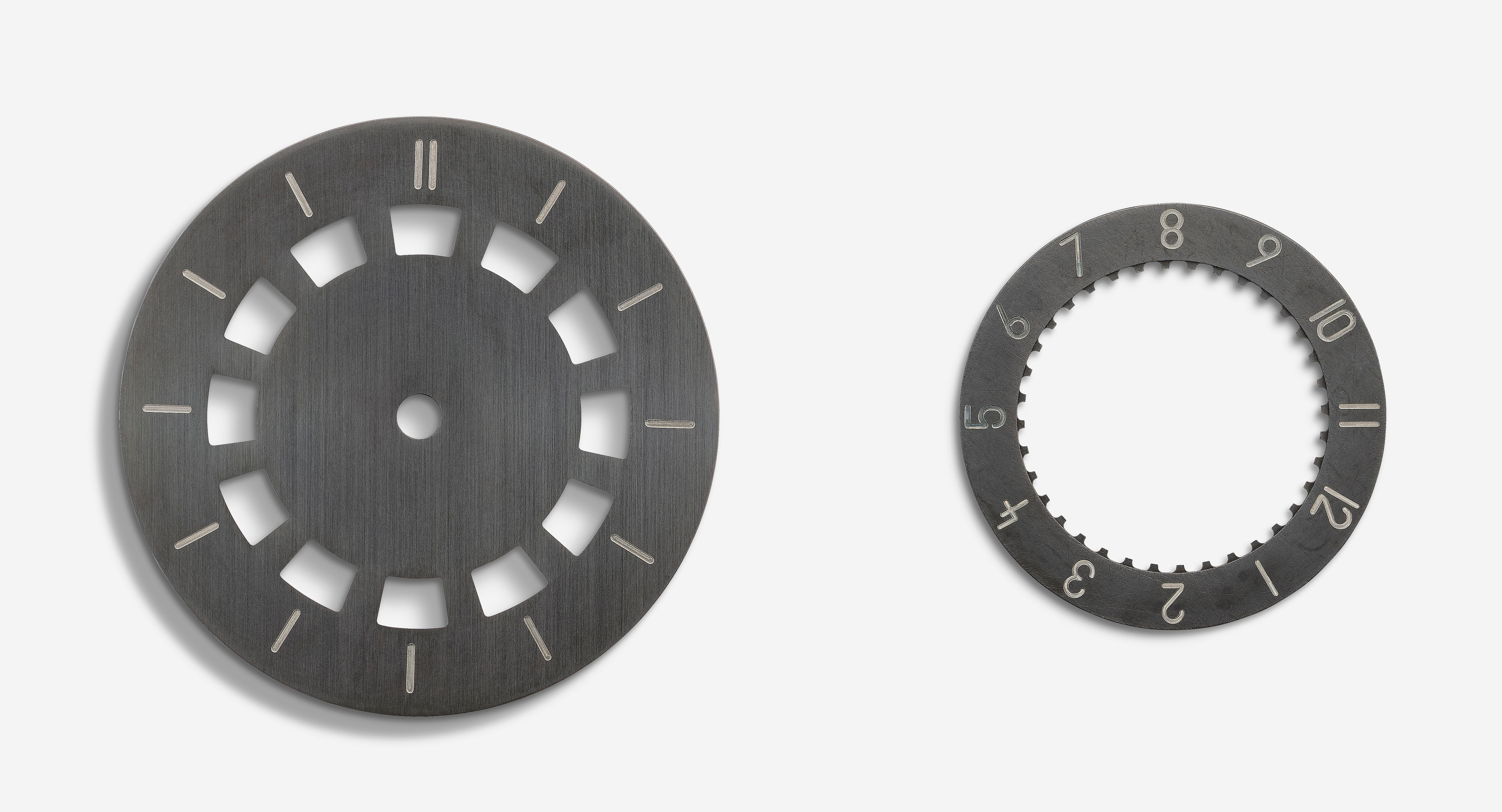

Oechslin replaces the 31 tooth date disk that comes on a ETA 2824-2 base movement with a 48 tooth user-adjustable time zone disk (pictured above right).
What was the motivation for the design?
Oechslin would like to read both the time and a second time zone with a single glance. His moveable time zone disk can be quickly adjusted so that the difference between the two time zones is displayed in the opening at 12 o’clock. The hour hand then displays the time in both time zones.
Overview
The two time zones watch uses an adjustable time zone disk to display two time zones on a single watch hand. A single glance will allow for simultaneous readings of two time zones. The moveable time zone disk can be quickly adjusted so that the difference between the time zones is displayed in the 12 o’clock aperture with the hour hand displaying both time zones.
Your two time zones watch
ochs und junior manufactures about 10 two time zones watches per year. Each watch is sold directly by us from the ochs und junior workshop in La Chaux-de-Fonds. You can select your two time zones watch from models designed by ochs und junior in our online shop, and have your watch shipped via FedEx Overnight Priority. Or you can design your two time zones watch using our online customizer. We are always available for personal consultations in your quest to select your desired two time zone watch.
Further information
Dimensions
42mm x 10.4mm (incl. crystal)
39mm x 10.4mm
36mm x 10.4mm
Print 1:1 (PDF)
Weight
42mm titanium: 62g (incl. sturgeon leather strap and buckle)
39mm titanium: 54g
36mm titanium: 47g
42mm sterling silver 925: 101g
39mm sterling silver 925: 93g
36mm sterling silver 925: 86g
Water resistance
100m in titanium, 100m in sterling silver 925. Both models are fit for almost any situation in daily life.

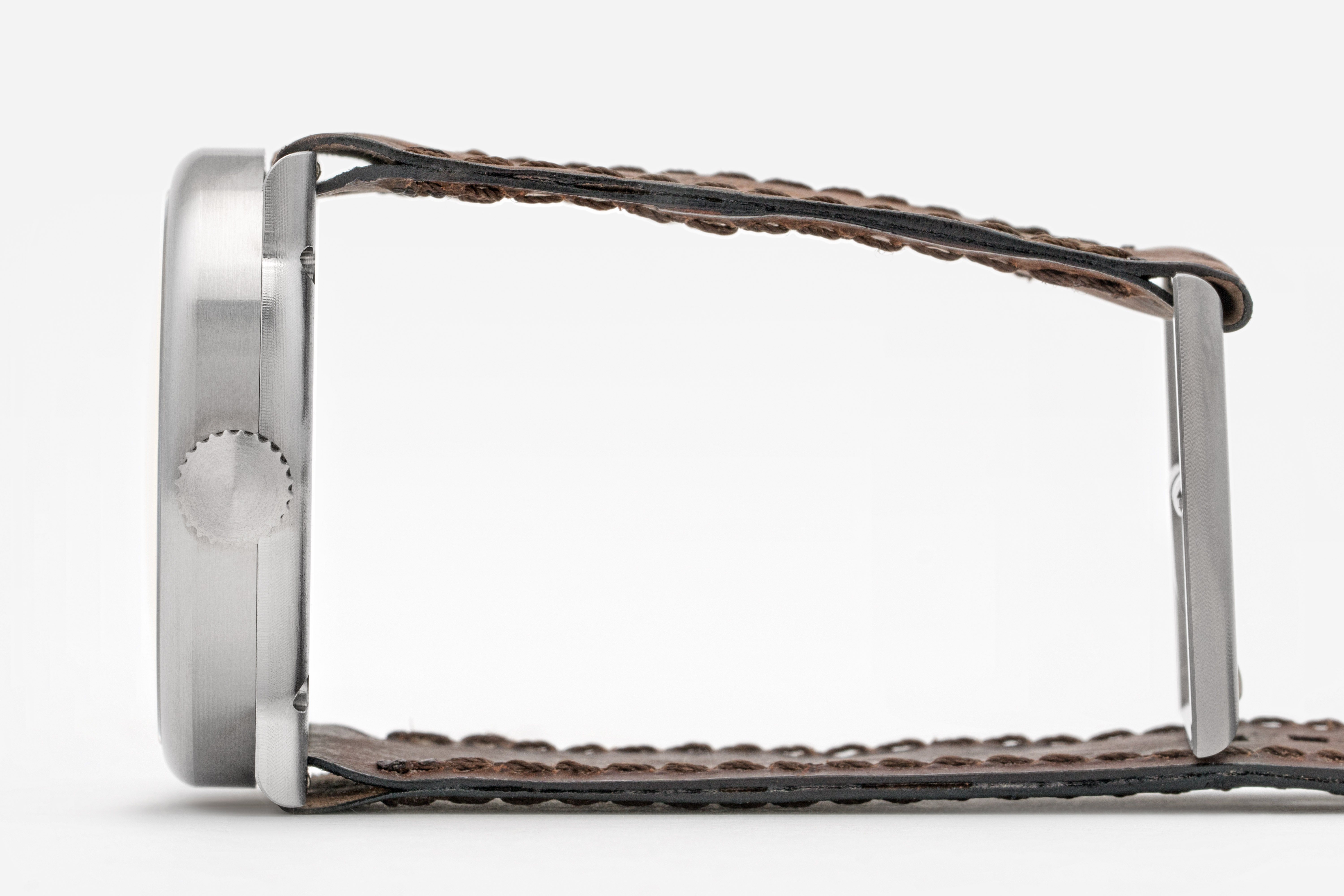

Case
2-part case designed by Ludwig Oechslin. Available in grade 5 titanium or sterling silver 925; additional materials upon request. Visible machining marks. ochs und junior watches require no movement ring due to the extremely small manufacturing tolerances on the case. Available exclusively with a solid case back.
Base movement
ETA 2824-2 with 38 hours of power reserve. Manufacturer: ETA SA / Grenchen / Switzerland.
Crown
Screw-down crown designed by Ludwig Oechslin (39mm and 42mm). Manufacturable on the right or left side of the case. Available in grade 5 titanium or sterling silver 925; other materials upon request. Manufacturer: Pibor SA / Glovelier / Switzerland. In 36mm the crown is not screw-down, however all sizes have the same water resistance rating. Manufacturer: Pibor SA / Glovelier / Switzerland.
Buckle
Leather strap: Designed by Ludwig Oechslin for 22mm watch straps with no loops. Visible machining marks. Grade 5 titanium or sterling silver 925; additional materials upon request. The design of the buckle differs slightly for a 42mm and a 39mm case and matches the lugs.
Rubber strap: Classic buckle, designed by Ludwig Oechslin. Visible machining marks. Grade 5 titanium or sterling silver 925; additional materials upon request. The design of the buckle differs slightly for a 42mm and a 39mm case and matches the lugs.
Watch straps
We offer over 80 possibilities, which you can explore in our straps pages: sturgeon, leather, suede, rubber.
Crystal
The sapphire crystals are manufactured by Stettler in Lyss / Switzerland. Both sides are treated with anti-reflective coating by Econorm in St-Imier / Switzerland.
Reading the time in low-light or dark conditions
For optimal readability our watches are coated in Super-LumiNova X1, manufactured by RC TRITEC in Teufen / Switzerland. Super-LumiNova is always applied in conjunction with a color pigment. All Pantone colors are available, but the brighter the color, the better the luminosity. Super-LumiNova shines green (the option used by ochs und junior) or blue, on special request. The Super-LumiNova coating is applied by hand by ochs und junior, or for dials with a color application by Cador in Eimeldingen / Germany and by Monyco in La Chaux-de-Fonds / Switzerland.
Swiss made
The ochs und junior two time zones watch is entirely manufactured in Switzerland. Each watch is hand-assembled and regulated at the ochs und junior workshop in La Chaux-de-Fonds.
Lifetime warranty
A lifetime warranty covers all parts invented by Ludwig Oechslin, and the entire watch is covered by a 2-year guarantee. ochs und junior’s small scale and direct sales model allow it to offer uniquely fast and competent service.
Designed by ochs und junior
Watches in the two time zones shop are designed by ochs und junior. Individually manufactured, they have the potential to become classics.
Custom-made
Ludwig Oechslin’s rigorously simple designs, the fact that we individually manufacture our parts, and the direct contact we have with our clients enable us to offer the highest possible degree of customization. The customizer shows many possibilities.
